| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Shenzhen Kaishin |
| Model Number: | KS600,KS800,KS900,KS1000,KS1200 |
| Minimum Order Quantity: | 1 squre meter |
| Price: | USD200-USD600 per square meter |
| Packaging Details: | As required |
| Delivery Time: | 10-20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 square meters per month |
| Material: | 6061-T6 Marine Aluminium | Range Of Application: | Sea, Lake |
|---|---|---|---|
| Size: | Customized | Freeboard: | 400-600mm |
| Decking: | Wood Plastic Composite Or Exotic Preciour Wood | Fender: | Rubber Fender |
| Cleat: | Aluminium Or Stainless Steel | Floats: | HDPE+EPS Foam |
| Highlight: | finger pontoon,marine pontoon |
||

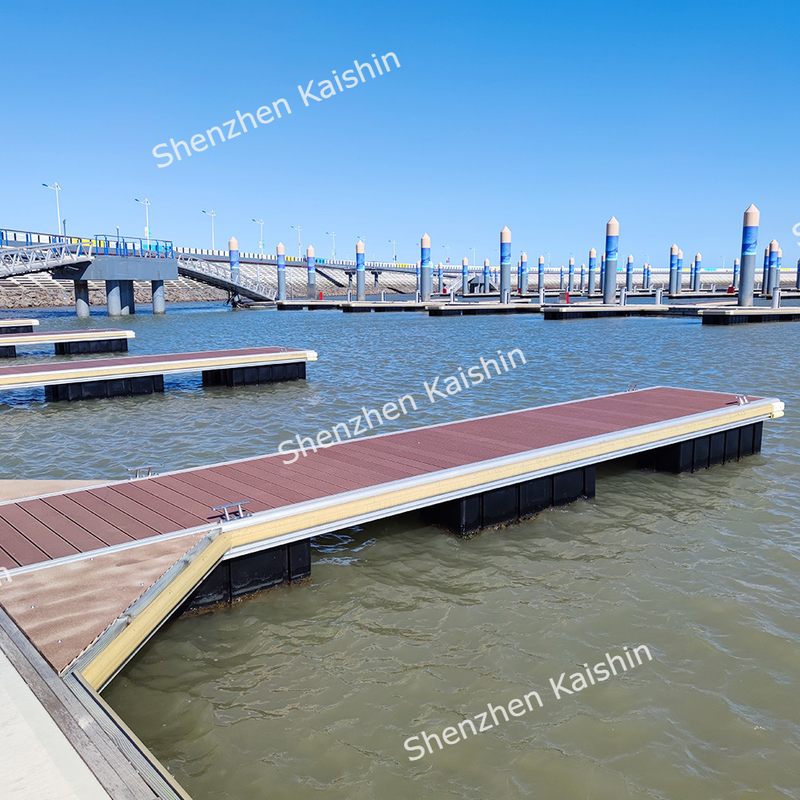

Aluminum Alloy Floating Dock For Boat
All our floating docks are custom-made, according to project requirements, and can have variable load and float ranges according to the specific need. The docks can be fitted with electrical or water systems and all accessories for the end users.
The main structure of the frame construction consists of marine grade aluminum 6061-T6, welded together so as to obtain a solid supporting frame, completed by electrically isolated aluminum beams, on which the floors are made of exotic precious wood or WPC (Wood Plastic Composite).
It's widely applied to various floating structures like marinas, private berths, and lakeside floating bridges.
| Aluminium Alloy Floating Dock System - Finger | |||||
| Item No. | Length (m) | Width (m) | Freeboard (mm) | Load Standard (kPa) | Remarks |
| KS600 | 6 | 1.0 1.2 1.5 1.8 2.0 |
400-600 | 2 | Custom sizes are available as request. |
| KS800 | 8 | ||||
| KS1000 | 10 | ||||
>>>ADVANTAGE
1. Do you have the sketch plan of your project? If you have it, please send it to us.
2. What kind of usage is for your project?
Residential, Commerce/industrial, Marina, Pleasure, Aquaculture, Rowing, Event, Special project, Renting, Other.
3. Do you need a Jetslide system?
4. Can we have the photos of the installation site? We need to know the shore type and environment around.
5. It Will be installed on:
A lake, A river without current, A weak current river, A medium current river, A strong current river, A sea, An ocean
6. Sea bottom type:
Sand, Pebbles, Mud, Rocks
7. Usual height of waves?
8. Do you have ice formation during winter?
9. Are you in a tidal area? And what is the tidal range?
10. What is the water depth at the beginning and end of the dock?
The information above is very important for us, please kindly write the answer to us so that we can customize your project.
With our experience in the Floating dock, we'll provide the best solution for your project.
Optional Installation Service
| Type | Free or Paid | Description |
| Electronic Instructions | Free | Instructions will be provided via email for your installation |
| Supervise on site | Paid | One or two experienced technicians will be sent to your country to supervise the installation |
1. Tensile Strength Test is necessary for each batch. Detailed test reports and pictures can be provided after the order is placed.
2. Surface tolerance, zinc finish, and paint finish also be tested according to customers' different requirements.
3. Products' weight is under a reasonable tolerance.
4. Each part's dimension is always according to the technical drawing and international tolerance standard.
5. Harness testing also can be provided if you prefer.
6. Salt spray testing is for customers with the most strict quality control requirement, pls pay attention, this testing needs extra testing charges.
7. Chemical analysis is rare and very much from customers' requirements, can be provided, but also needs extra testing charges.
8. Any other testing requirements, feel free to let us know. will do as we can to support your business always.
| No. | FAQ | Answers |
| 1 | How do I get an estimate? How do we get started? | Please kindly send us an online quote request providing us with the drawing and details available, we are able to get back to you with a quotation. |
| 2 | How long does it take to manufacture a full set of floating docks? | All purchases of the floating dock project are built to order, please contact us to check with our sales representative for the current lead time. |
| 3 | Is the installation included with the purchase of a floating dock project? | No. Installation is not included. However, installation instructions can be provided. |
| 4 | How do I know what type of installation is best for me, on my property? | Every situation on every property is slightly different. We can provide a consultation to review your needs according to your local conditions. We would assist you in planning your floating dock project and customizing your dock with a great selection of dock accessories. |
