| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Kaishin |
| Model Number: | AF05 |
| Minimum Order Quantity: | 100 Square Meters |
| Price: | USD 320.00 Square Meters FOB Shenzhen/ Guangzhou |
| Packaging Details: | Standard Packing |
| Delivery Time: | 55-60 days |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 6000 Square Meters Month |
| Dock Type: | Floating Dock | Dock Frame: | Aluminum Alloy |
|---|---|---|---|
| Fender: | Rubber Fneder | Decking: | WPC Solid Decking |
| Name: | Aluminum Marine Floating Dock | Roller: | Roller/ Roller Block |
| Highlight: | Adults Stand Up Paddleboard,Non Slip Stand Up Paddleboard,Inflatable SUP Paddle Board |
||

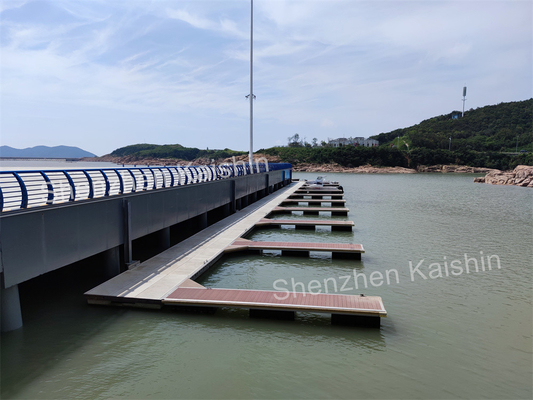

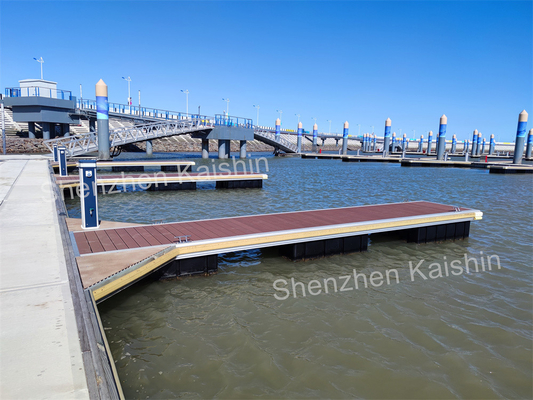

marine floating dock or aluminum marine dock floating bridge pontoon
Every floating dock we make is custom-made to meet the specific needs of each project, and it can be designed to handle a wide range of loads and float levels depending on the project's needs. In addition to electrical and water systems, all dock accessories can be installed.
It is necessary to design, engineer, and fabricate each floating dock to meet the specific requirements of the site. The aluminum floating docks we manufacture can be made in any shape or height, making sure each one meets the exact functional requirements of its installation.
Specification
| Freeboard | 300mm-600mm | Mainly depends on the weight & load & structure design. Being controllable. |
| Lifespan | 20-50 years | Should be maintained periodically. |
| Floating dock specifications (The main part) | ||
| Items | Details | Remarks |
| Frame | Aluminum Alloy | Anti-corrosion; Durable; Strong yield strength; Lightweight; Easy to install |
| Pontoon Box | HDPE & EPS Foam |
Durable; Anti-corrosion; Anti-UV; Low-temperature toughness; Light to transport; Easy to maintain & install; |
| Decking panel | Wood Plastic Composite (WPC) |
Various colors & sizes; Corrosion resistant; Mothproof; Low water absorption; Anti-UV; Easy to maintenance |
| Floating dock specifications (The accessories part) | ||
| Items | Details | Remarks |
| Gangway/ Ramp |
Aluminum Alloy Frame, Handrail, Decking |
Strong loading capability; Safe and stable; UV resistant; Long life span; Low maintenance cost; Flexible movement (with rollers, can adjust according to water level) |
| Mooring Cleat | Stainless Steel / Aluminium cast | 2.5T-10T; Durable; Corrosion resistant and sturdy in the saltwater environment |
| Pile Cap | LLDPE Cone | UV Resistant; High-Stress Crack Resistance; Maintenance Free; Seamless Design |
| Pile Guide | AISI-316 Nylon roller / Block |
Easy operation and maintenance; Durable |
| Rubber Fender | D-shape Extrusion compound |
Strong – No pull through; Protects – Shock Absorbing; Looks Great – No fading; Easy Install – Nail or screw; Economical – Saves Money |
| Water and Power Pedestal |
Supply electrical & water, Aluminum material case |
Supply electrical & water; Voltage 220V; 16A/32A/ 63A;2x 1/2 Water Tap; LED Lightning |
| Fire Pedestal |
Stainless steel case, Fire extinguisher, Lifebuoy |
Compact design; Tempered Safety Glass; Longer life in outdoor applications; Sturdy surface resists chipping, peeling, and flaking |
| Corner Bumper | Rubber / PVC |
Tough and tear-resistant; Provides maximum cushion; Protection for docks & hulls; Easily install; WILL NOT mark or mar your hull |
| Other accessories | Bolts&Screws,Rivet,Rubber Pad,etc. | All connection or fixing fittings for each part are well-designed and durable, especially for the marine environment. |
>>>ADVANTAGE
We Kaishin have a professional technical team, including engineers, designers, and skilled workers. We also establish a good relationship with the design institute, which creates our position in the marine industry. With over 13 years of experience in the floating dock market, Shenzhen Kaishin is your one-stop shop for all your floating system needs, no matter commercial floating dock projects or private berth needs.
