| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Kaishin |
| Model Number: | KS600, KS900,KS1000,KS1200 |
| Minimum Order Quantity: | 1square meter |
| Price: | USD200-USD500 per square meter |
| Packaging Details: | As required |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 4000 square meter per month |
| Material: | Marine Grade Aluminium 6061 T6 | Range Of Application: | Sea, Lake |
|---|---|---|---|
| Size: | Customized | Freeboard: | 500mm |
| Decking: | Wood Plastic Composite Or Exotic Precious Wood | Fender: | Rubber Fender |
| Cleat: | Aluminium Or Stainless Steel | Floats: | HDPE+EPS Foam |
| Type: | According To Your Requirement | Thickness: | 0.2mm~15mm Or Customized |
| Color: | Customized | Flooring Accessories Type: | Pedestal |
| Size: | CUSTOM MADE TO ORDER | Product Name: | Embarcadero De Aluminio Pantalanes Flotantes De Aluminio Aluminio Puente Pier Em Aluminio |
| Highlight: | Berth Marine Floating Dock,Yacht Marina Berth Pontoons,Aluminum Alloy marina berth pontoons |
||

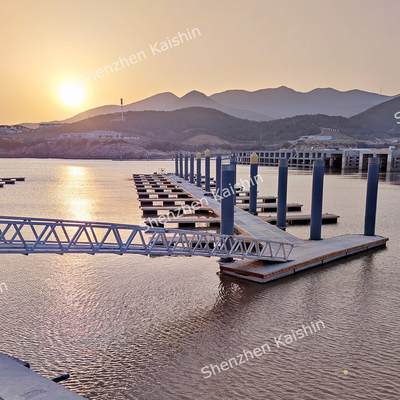

The era of massive and cumbersome wooden and cement docks is thing of the past. The aluminum alloy structure has a strong versatility as it is suitable for rivers, lakes, and seas. A new alternative to a bridge or walkway for transitioning over wetlands and small bodies of water. It's widely applied to various floating structures like marinas, private berths, and lakeside floating bridges. Floating docks are custom-made and can have variable load and float ranges based on project requirements. All accessories for the end user can be added to the docks, including electrical and water systems.
This frame is constructed primarily from marine grade aluminum 6061-T6, which is welded together to form a solid supporting frame, which is complete with electrically isolated aluminum beams. The floors are made of exotic precious wood or WPC (Wood Plastic Composite).
Specification
| Freeboard | 300mm-600mm | Mainly depends on the weight & load & structure design. Being controllable. |
| Lifespan | 20-50 years | Should be maintained periodically. |
| Floating dock specifications (The main part) | ||
| Items | Details | Remarks |
| Frame | Aluminum Alloy | Anti-corrosion; Durable; Strong yield strength; Lightweight; Easy to install |
| Pontoon Box | HDPE & EPS Foam |
Durable; Anti-corrosion; Anti-UV; Low-temperature toughness; Light to transport; Easy to maintain & install; |
| Decking panel | Wood Plastic Composite (WPC) |
Various colors & sizes; Corrosion resistant; Mothproof; Low water absorption; Anti-UV; Easy to maintenance |
| Floating dock specifications (The accessories part) | ||
| Items | Details | Remarks |
| Gangway/ Ramp |
Aluminum Alloy Frame, Handrail, Decking |
Strong loading capability; Safe and stable; UV resistant; Long life span; Low maintenance cost; Flexible movement (with rollers, can adjust according to water level) |
| Mooring Cleat | Stainless Steel / Aluminium cast | 2.5T-10T; Durable; Corrosion resistant and sturdy in the saltwater environment |
| Pile Cap | LLDPE Cone | UV Resistant; High-Stress Crack Resistance; Maintenance Free; Seamless Design |
| Pile Guide | AISI-316 Nylon roller / Block |
Easy operation and maintenance; Durable |
| Rubber Fender | D-shape Extrusion compound |
Strong – No pull through; Protects – Shock Absorbing; Looks Great – No fading; Easy Install – Nail or screw; Economical – Saves Money |
| Water and Power Pedestal |
Supply electrical & water, Aluminum material case |
Supply electrical & water; Voltage 220V; 16A/32A/ 63A;2x 1/2 Water Tap; LED Lightning |
| Fire Pedestal |
Stainless steel case, Fire extinguisher, Lifebuoy |
Compact design; Tempered Safety Glass; Longer life in outdoor applications; Sturdy surface resists chipping, peeling, and flaking |
| Corner Bumper | Rubber / PVC |
Tough and tear-resistant; Provides maximum cushion; Protection for docks & hulls; Easily install; WILL NOT mark or mar your hull |
| Other accessories | Bolts&Screws,Rivet,Rubber Pad,etc. | All connection or fixing fittings for each part are well-designed and durable, especially for the marine environment. |
>>>COLLECT INFORMATION
1. Do you have the sketch plan of your project? If you have it, please send it to us.
2. What kind of usage is for your project?
Residential, Commerce/industrial, Marina, Pleasure, Aquaculture, Rowing, Event, Special project, Renting, Other.
3. Do you need a Jetslide system?
4. Can we have the photos of the installation site? We need to know the shore around the type and environment.
5. It Will be installed on:
A lake, A river without current, A weak current river, A medium current river, A strong current river, A sea, An ocean
6. Sea bottom type: Sand, Pebbles, Mud, Rocks
7. Usual height of waves?
8. Do you have ice formation during winter?
9. Are you in a tidal area? And what is the tidal range?
10. What is the water depth at the beginning and end of the dock?
The information above is very important to us, please kindly write the answer to us so that we can customize your project.
>>>ADVANTAGE
The dock products and accessories we produce are competitively priced and are suited for dock builders, marinas, yacht clubs, retailers, as well as individuals.
Shenzhen Kaishin provides all your floating dock needs, whether you are looking for a commercial floating dock system or a private berth, with years of experience and know-how.
| No. | FAQ | Answers |
| 1 | How do I get an estimate? How do we get started? | Please kindly send us an online quote request providing us with the drawing and details available, we are able to get back to you with a quotation. |
| 2 | How long does it take to manufacture a full set of the floating dock? | All purchases of the floating dock project are built to order, please contact us to check with our sales representative for the current lead time. |
| 3 | Is the installation included with the purchase of a floating dock project? | No. Installation is not included. However, installation instructions can be provided. |
| 4 | How do I know what type of installation is best for me, on my property? | Every situation on every property is slightly different. We can provide a consultation to review your needs according to your local conditions. If you decide to purchase a dock from us, the consulting fee will be waived and we can design a dock and land assembly plan tailored particularly for your specific property and waterfront. |
